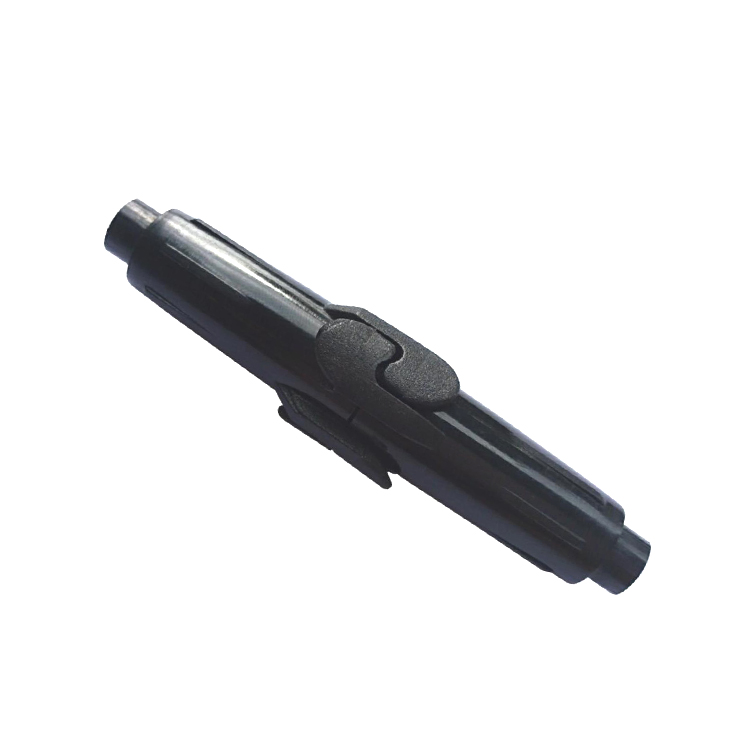

H3-75B 250V 10A 6*30 3AG Fuse Holder ¼" x 1¼" In-line Bayonet Cartridge Fuse Holder Phenolic Body
Product Description
For 6x30 ¼" x 1¼" 6.3x32mm 3AG FUSES
- Withstanding Voltage: >AC2000V/1min
- lnsulation Resistance: ≥100mΩ DV500V
- Electrical Rating:Rated at 10A 250V AC
- Insulation Body: Bakelite
- Konb: bayonet
- Terminals:brass
- Operation Temperature:-10C to +180C
| Item Name | 6x30 Fuse Holder |
| Part No. | H3-75B |
| Mounting Type | In-line |
| Electrical Rating | 10A 250V |
| Body Color | black |
| Body material | Phenolic |
| Terminal material | brass |
Features of 6x30 In-line Mount Fuse Holder
1.Easy connection by cables with strong locking.
2.Safety: Safety insulation material body and UL standard PVC cable ensure safe operation.
3.High reliability: finely made contacts and screw structure ensures the fuses are in full contact with the terminals.
Wide range and customized services
| Fuses Amperes | 0.2A 0.315A 0.5A 1A 2A 3.15A 4A 5A 6.3A 8A 10A 12A 15A 16A 20A(UL lISTED) |
| Wire Gauge | 18AWG 16AWG 14AWG (UL1015 PVC) |
| Custom Cable | length & color (upon request) |
Please allow 1-3mm tolerance due to manual measurement.
Applications
Electronic boards, Car, Boat, Truck, SUV, Motorcycle, etc.
Standard Package:
depends on the cable spec
Shipping Term:
EXW, DDU, DDP, C&F, FOB
Shipping Methods:
International Express, By Air, By Sea
Selection of the Fuse and Holder Solution
The first step is to answer the following questions:
- Will the fuse need to accessible for replacement?
- How often will the fuse need to be replaced?
- Should the end customer of the appliance have access to change the fuse?
- Should the fuse only be accessible from outside the appliance?
- How much is available to spend on safety and reliability?
About Us
Founded in 1999, Reomax focuses on manufacturing circuit protection components for over-current, over-temperature and over-voltage applications. Reomax products are widely used in various kinds of electronic devices, such as consumer electronics, mobile terminals, household appliances, lighting appliances, power supplies and adapters.
Q: Are you trading company or manufacturer ?
A: We are a fuse product factory.
Q: How long is your delivery time?
A: Within 3 days if the goods are in stock, 5-10 days if the goods not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What are your terms of payment ?
A: 100% in advance, T/T.
For 6x30 ¼" x 1¼" 6.3x32mm 3AG FUSES
- Withstanding Voltage: >AC2000V/1min
- lnsulation Resistance: ≥100mΩ DV500V
- Electrical Rating:Rated at 10A 250V AC
- Insulation Body: Bakelite
- Konb: bayonet
- Terminals:brass
- Operation Temperature:-10C to +180C
| Item Name | 6x30 Fuse Holder |
| Part No. | H3-75B |
| Mounting Type | In-line |
| Electrical Rating | 10A 250V |
| Body Color | black |
| Body material | Phenolic |
| Terminal material | brass |
